  Products


Amorphous Core Cutting Machine

Amorphous Core Cutting Machine Amorphous Core Cutting Machine Amorphous Core Cutting Machine Amorphous Core Cutting Machine
Product name:Amorphous Core Cutting Machine
Item:1-11
Details:

Video Link of FJJ-2000 amorphous core cutting machine Video link of FJJ-5000 amorphous core cutting machine
Description:

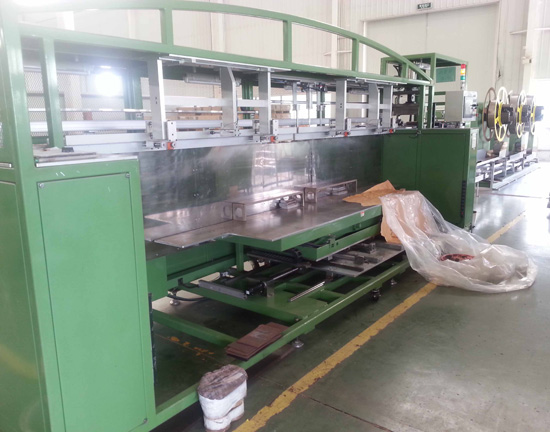

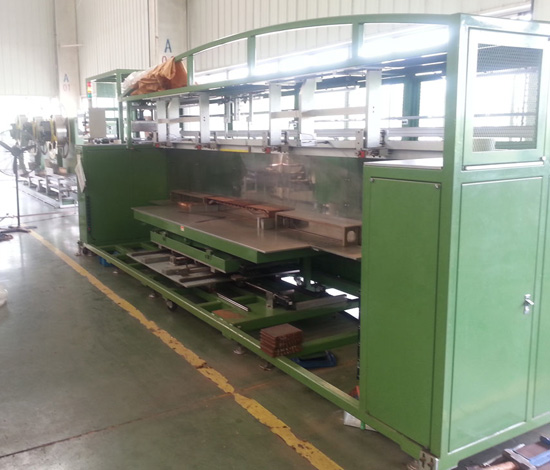

This amorphous core cutting machine is specially designed for automatic cutting and stacking amorphous alloy strips for cores. This line adopts PLC control, servo drive, touch screen operation and high precision mechanical transmitting mechanisms, and so assures high automation, high productivity and high reliability. This machine mainly satisfies for processing 3-phase-3-column big amorphous alloy cores.
|amorphous core cutting machine| amorphous core cutting machine| amorphous core cutting machine| amorphous core cutting machine|
Main technical data:

Code

FJJ-2000

FJJ-5000

Suitable Amorphous core height

150-850mm

150-2000mm

Suitable amorphous core width

30-450mm

50-1500mm

Suitable amorphous core piling thickness

25-130mm

25-150mm

Amorphous strip width

140-230mm

Cutting length

300~3000mm

300~5000mm

Cutting thickness

Max. 15 layers, each 0.025mm thick

Cut-to-length precision

+/- 0.5mm

Cutting angle precision

+/-0.05 degree

Step-lap stacking precision

+/-0.5mm

Feeding speed

5-80m/min

Cutting speed

0-30 times per minute

0-20 times per minute

Electric power supply

10kW

Air consumption

0.3m3/min

Line occupation

12 x 2 x 2.2m

15 x 2 x 2.2m

|amorphous core cutting machine| amorphous core cutting machine| amorphous core cutting machine| amorphous core cutting machine|
 Note: We can provide not only complete machines for amorphous transformers, but also turn-key project including technology support.
