Traditional Horizontal Coil Winding Machine

Traditional Horizontal Coil Winding Machine Traditional Horizontal Coil Winding Machine

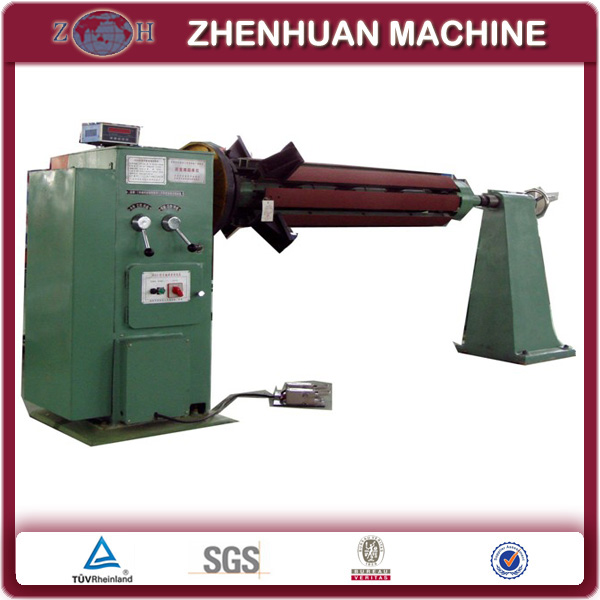

Product name:Traditional Horizontal Coil Winding Machine
Item:2-3
Details:

Description of horizontal coil winding machine:

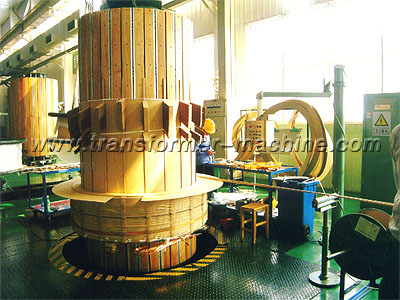

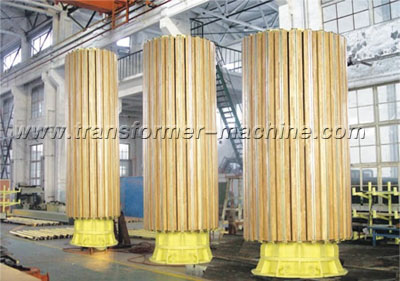

This series machines are for winding coils used in transformers and motors.
-- Simple structure: Comprised of main machine and tail supporter. Tail supporter is movable for different size of coils.
-- Special counter:
A. Intelligent: add when naturally rotating, reduce when reversing
B. Number of turns can be preset. When reaches the preset turns, machine stop automatically
C. Memorizing function: no matter how long power stops, when energize, the original turns will be displayed
D. Separate counting function can be set.
--Speed is continuously adjusted by inverter; ZHR-1, ZHR-2 and ZHR-3 also have mechanical gears for speed changing.
--Inverter is of world famous brand, such as Siemens, Mitsubishi, etc.

Main technical data of horizontal coil winding machine:

Specification / Model

ZHR-1

ZHR-2

ZHR-3

ZHR-4

ZHR-5A

ZHR-5B

ZHR-6

Suitable transformer capacity (max., kVA)

800

3150

8000

25000

90000

90000

500000

Height of clicker center (mm)

900

1000

1100

1200

1400

1400

1800

Diameter of disc clicker (mm)

250

250

400

600

1000

1000

1400

Rotating speed of clicker (rpm)

0-200

0-100

0-80

0-30

0-30

0-10

Max. Torque of clicker (N·m)

600

1000

2500

4000

8000

15000

20000

Max. bearing weight (kg)

1000

1000

2000

3000

5000

10000

15000

Motor power (kW)

3

3

5.5

7.5

11

15

18.5

Power supply



380V, 3 phase, 50Hz

horizontal coil winding machine| horizontal coil winder| transformer coil winding machine| transformer coil winder| distribution transformer winding machine
