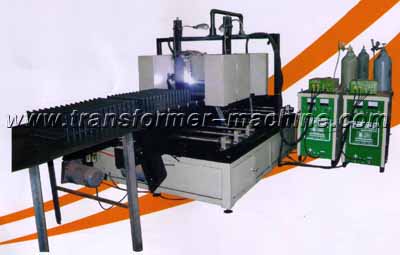

Corrugated Tank Fin Welding Machine

Corrugated Tank Fin Welding Machine Corrugated Tank Fin Welding Machine
Product name:Corrugated Tank Fin Welding Machine
Item:4-2
Details:

Description
This machine is special designed for welding fins of corrugated tanks.

Advantages
- PLC control, full automatic, automatic conveying, automatic clamping, automatic welding
- High welding speed, much quicker than manual welding
- Argon arc welding, very tight welding result, very clean and smooth finished welding surface
- Very easy and simple operation, touch screen control

Specifications
- Suitable fin size: max. 1400 x 1400 x 500mm
- Suitable fin thickness: 1-1.5mm
- Suitable space inside fin: 4-6mm
- Welding speed: when fin height is 100mm, 3 fins per minute; when fin height 200mm, 2 fins per minute; when fin height is 400mm, 1 fin per minute (such speed is also based on the fin thickness)
- Argon arc welding machine (TIG): two pieces, welding current 30-300A
- Compressed air needed: 0.8MPa
- Machine weight: about 4000kg
- Dimension: about 3600 x 2000 x 2000mm

Product Samples
