Enamelling Machine

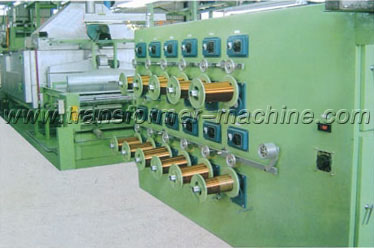

Enamelling Machine Enamelling Machine
Product name:Enamelling Machine
Item:8-5
Details:


Item

HEE2-2400

HEE3-3000

HEC4-3600

Wire diameter range         (mm)

Φ0.035 -Φ0.07

Φ0.05 -Φ0.10

Φ0.08 -Φ0.25

No. of wires               (pcs)

20/24

24/28

20/24/28

Coating stations            (times)

10/8

8/7

8/7

Production speed          (m/min)

Max. 400

Max. 400

Max. 330

Baker type

hot air exchanging

hot air cycling

Length of baker            (mm)

2400

3000

3600

Length of annealing furnace  (mm)

3200

4500

5500

Take-up method

dual-axis automatic spool changeover

Take-up weight            (kg)

2-4, PT4

4-15, PT15

Painting method

roller + felt

Paint appending system

automatic appending based on paint viscosity

Total power               (kW)

80

90

120



Item

HEC4-4000

HEC5-4500

HEC5-4800

Wire diameter range         (mm)

Φ0.10 -Φ0.30

Φ0.20 -Φ0.60

Φ0.40 -Φ0.80

No. of wires               (pcs)

20/24/28

16/18/20/24

14/16/18/20

Coating stations            (times)

8/8/7

10/9/8

10/9/8

Production speed          (m/min)

Max. 300

Max. 140

Max. 85

Baker type

hot air exchanging

hot air cycling

Length of baker            (mm)

4000

4500

4800

Length of annealing furnace  (mm)

6000

7500

8000

Take-up method

dual-axis automatic spool changeover

single-axis moment take-up

Take-up weight            (kg)

4-25, PT25

10-25, PT25

10-25, PT10-PT25

Painting method

“roller + felt” or “roller + die”

Paint appending system

constant-temperature refluxing

Total power               (kW)

130

140

150
