Automatic Transformer Coil Winding Machine

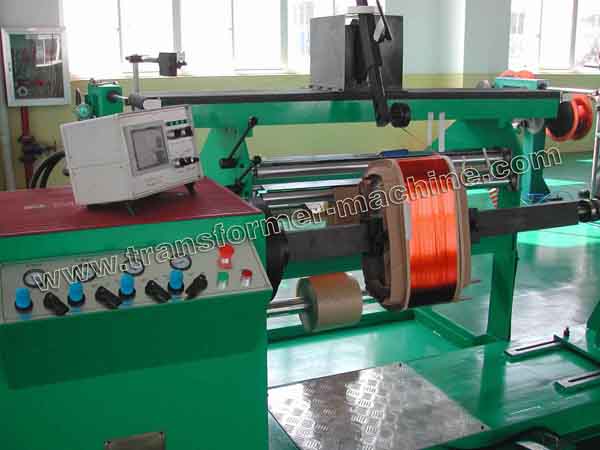

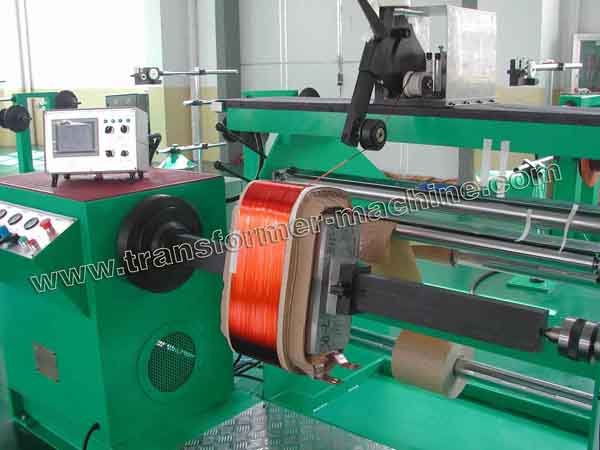

Automatic Transformer Coil Winding Machine Automatic Transformer Coil Winding Machine Automatic Transformer Coil Winding Machine Automatic Transformer Coil Winding Machine
Product name:Automatic Transformer Coil Winding Machine
Item:2-1
Details:


 Video Link

Description:
This automatic transformer coil winding machine is suitable for winding coils used in middle-small distribution transformers, current/potential transformers, reactors and similar.

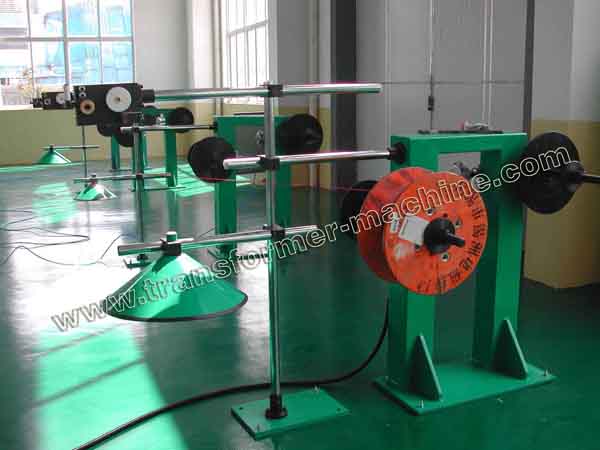

This automatic transformer coil winding machine is comprised of main winding device, auto wire-traversing device, interlaminar insulation feeding device, tension-adjustable wire pay-off stand, pneumatic system, PLC & servo control system, etc.
This automatic transformer coil winding machine is of high automation, complete functions, and powerful dynamic force. It can promise the axial tightness and latitudinal compactness and so it is especially suitable for winding rectangular coils.


Main features:
-- Hard gear wheel speed adjusting system, high efficiency
-- PLC control, servo & ball screw driving wire arrangement, high precision
-- Inverter controlling speed, reliable and sensitive starting and braking
-- Parameters can be pre-set on the touch screen, convenient and intuitionistic.
-- PLC, touch screen and inverter are Mitsubishi brand, original from Japan
-- Servo motor and controller are Mitsubishi brand, original from Japan
-- Ball screw and linear rail are SBC brand, original from Korea

|automatic transformer coil winding machine|automatic transformer coil winding machine|automatic transformer coil winding machine|
Specifications:

Item

Data

Mandrel height to ground

850mm

Suitable coil length

Max. 1000mm

Suitable coil ID

Min. 80mm

Suitable coil OD

Max. 600mm

Suitable coil weight

Max. 500kg

Winding moment

600N·M

Winding speed

0-200rpm, inverter control adjustable

Automatic conductor traversing device

Min. pitch 0.01mm

Suitable rectangular conductor

Max. 3mm x 12mm

Suitable round conductor

0.3~3mm

Main driving motor power

4kW, inverter control

Conductor traversing servo motor

220W

|transformer coil winding machine|transformer coil winding machine|transformer coil winding machine|
