Product name:Transposing Conductor Production Line
Item:8-4
Details:

Usage
CTC-95 transposed conductor production line is special for CTC used in transformer windings less than 1000kVA and 1000KV. This machine can curve small side of the flat wire via accurate mechanical actions of transposing device and transpose each other repeatedly; Then combine together and taped with insulation papers and recoiled.

Characteristics

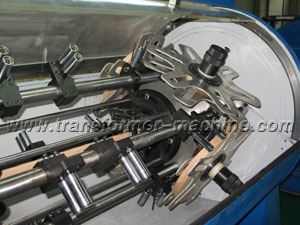

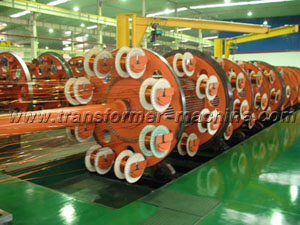

1) Can be 24-96 pay off wires; Super long pay-off distance, max. pay-off angle <16°

2) 8-10°compulsive planning device with tension fine adjusting

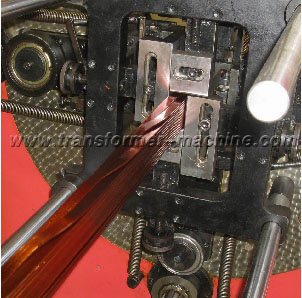

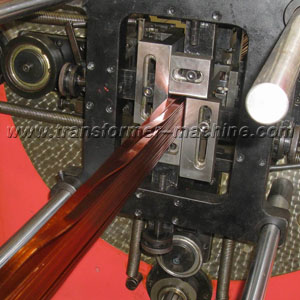

3) Constant-pressure double-pushing transposing action, transposing distance 22-35mm, gapless adjustment, transposing frequency max. 120 times per minute

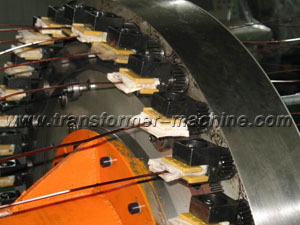

4) Complementary tension type paper taping, lapping ratio arbitrarily preset between 40-70%

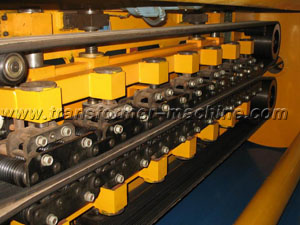

5) Double-station caterpillar type towing device, towing force is displayed and adjusted

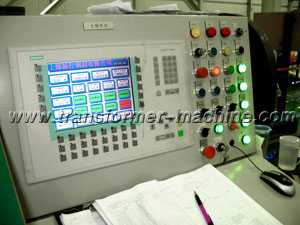

6) AC servo plus inverter drive, PLC control, high precision synchronized controlling transmission of each part, recording and self-rectifying, long-distance diagnosing.

Specifications

Item

Data

Unit

Quantity of flat wires

7-95

pcs

Single wire side

A: 1.12-2.85; B: 3.15 - 13

mm

Max. dimension of finished CTC

28x90

mm

Speed of stranding cage (stepless)

1-10

rpm

Towing speed (stepless)

1-10

m/min

Transposing pitch (stepless)

50-250

mm

Taping speed (stepless)

50-450

rpm

Taping pitch (stepless)

50-100

mm

Max. taping layers

8 x n

layers

Width of insulation paper

14-35

mm

Transposing direction

Right



Main motor power

18-55

kW

Wire disk size in cage

PN400-PN500



Take-up disk size

PN800-PN2000



Take-up motor power

7.5

kW

Dimension of the line

(38000-58000) x 5200 x 4200

mm

Weight

38-61

Ton

Total power

60-113

kW
