Product name:Busbar processing machine
Item:9-2
Details:

Description

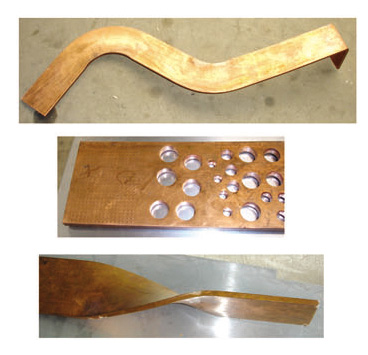

This series machines are special for processing aluminum and copper busbars used in electric power, high/low voltage electric apparatus and busway industries. It combines punching, cutting and bending functions together as well as some other functions such as embossing, twisting, flatting, pressing tie-in, etc.

Explanation of machine code

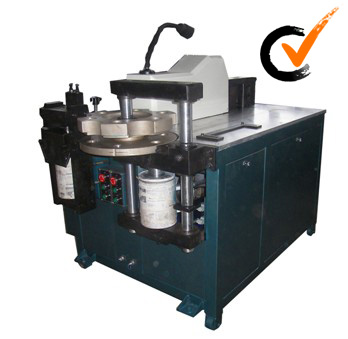

WMX-303C—one main driving motor, one set of hydraulic system; Three stations can’t work simultaneously.
WMX-303D—three main driving motors, three set of hydraulic system separately for punching, cutting and bending and so three stations can work simultaneously.
WMXZ-303C—same as above, only one motor and one set of hydraulic system, just the punching unit is like turret punch press, there are total six turret stations with six kind of punching moulds and don’t need changing tools during punching.
WMXZ-303D—same as above, three motors and three hydraulic systems, the punching unit is of turret structure.
NCMX-303DK1—it is just 303D type equipped with one PLC control system. This PLC control system is only one axis control which means it only control the bending angles.
NCMX-303DK2—it is just 303D type equipped with one PLC control system. This PLC control system is two-axis control which control both bending angles and bending backguage, punching position on length direction and cutting length.

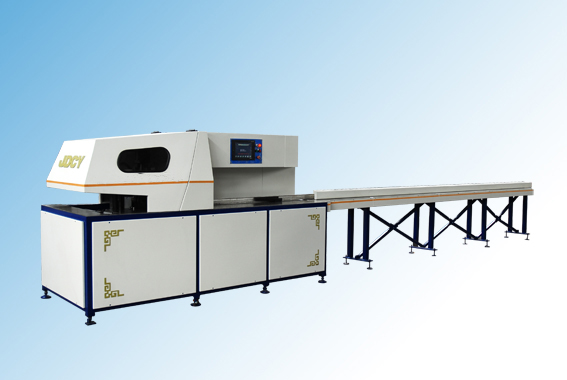

FMCMX-303K--this is full automatic CNC busbar processing machine, four-axis control

Main Configurations
-Main driving motors: from domestic
- Oil pump: from Taiwan
- Electromagnetic valves and overfall valves: from Taiwan
- Relays: Schneider
- Contactors: Schneider
- Other electric parts: from China
- PLC, touch screen, grating ruler (for NC type): from Japanese Mitsubishi

Specifications

Function

Description

WMX -303C

WMX-303D

WMXZ -303C

WMXZ-303D

NCMX-303DK1

NCMX-303CK2

Punching

Max. punching pressure(KN

300

Hole diameter (mm)

ф4.3ф25

Max. thickness (mm)

12

Max. width (mm)

150

Cutting

Max. thickness (mm)

12

Max. width (mm)

150

Bending

Max. bending pressure (KN)

300

Max. width (mm)

150

Max. thickness (mm)

12

Vertical bending

Max. width (mm)

100(10 copper)

Min. bending angle

90°

Embossing

Pressing tie-in

Twisting

Dimension (L x W x H, mm)

1300×1000×900

1300×1000×900

1300×1000×900

1700×2200×1550

Weight (kg)

1.1/1.2T

1.3/1.4T

1.2T

1.2T

Main motor power

303C series5.5kW;  303D series4kW (three motors)
