Product name:Parallel reactor sector core cutting machine
Item:7-1
Details:

Description

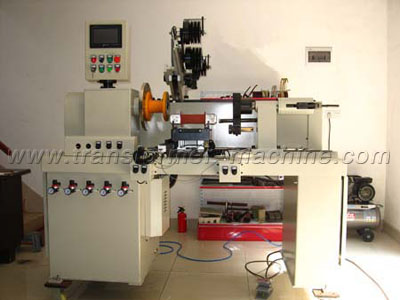

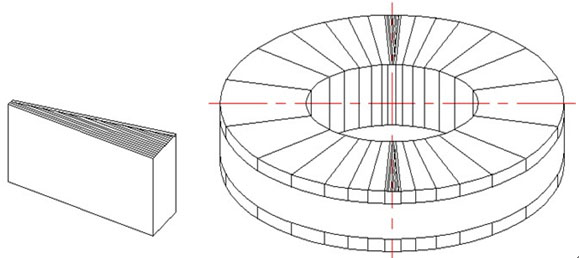

Parallel reactors are used widely at present. Core of parallel reactor is comprised of many wedges. Each wedge is stacked by many pieces CRGO strips in different length.


Machine Buildup
1. Pneumatic expansion decoiler, capacity 2T, inverter controlled speed adjustable
2. Servo feeding and guiding device
3. Cutting table and pneumatic shear
4. Stacking device
5. Pneumatic system
6. PLC control system
Note: Can be added hole punching device when needed.

Advantages
-Side guide is manually adjusted via ball screw, numerical displaying
- Decoiling and servo feeding is interlocked control
- Touch screen operation, freely pre-set length, step difference, speed, cutting quantity, etc.
- Servo motor feeding, high precision
- World famous key transmitting components, such as ball screw, linear guide, linear bearings and optical scale.

Specifications

Item

DKHJ-600

DKHJ-3500

Remarks

Cutting length         (mm)

5-600

5-3500



Cutting width         (mm)

50-300

50-440



CRGO thickness       (mm)

0.23-0.5

0.23-0.5



Cutting precision       (mm)

±0.1

±0.1



Burr height            (mm)

0.02

0.02

800~1000 thousand times after grinding

Servo feeding speed   (m/min)

0-120

0-120



Cutting speed       (pcs/min)

60

60

When 40mm long
