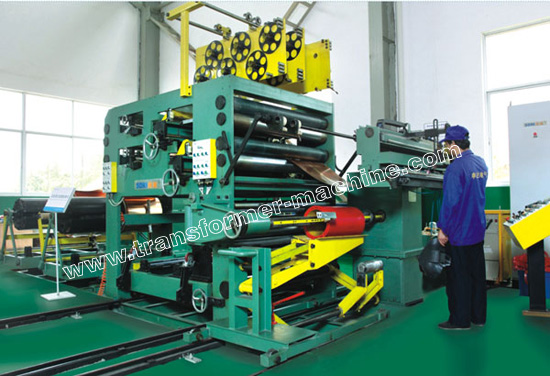

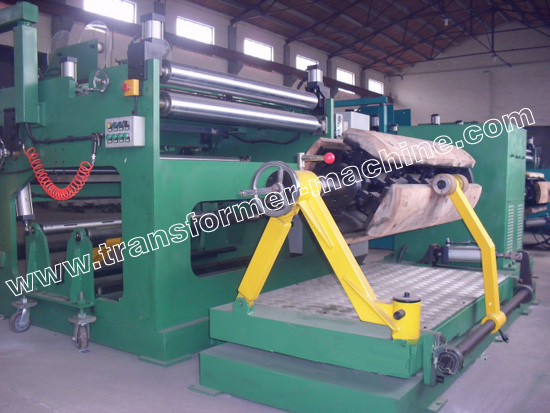

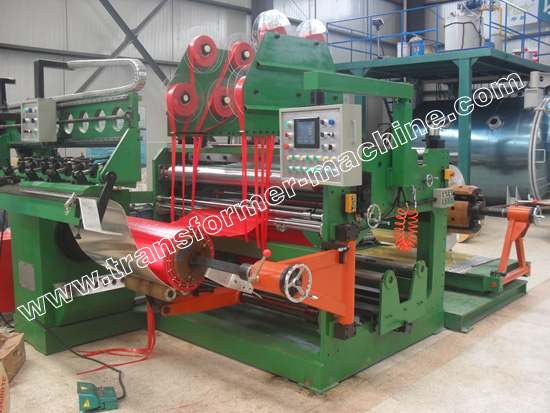

Product name:Foil Winding Machine
Item:2-6-1
Details:

Video Link
Description of foil winding machine:

BRJ series foil coil winding machine is for winding foil type coils in transformer and electric apparatus.
There are usually three kind of foil coil width: 1400mm, 1100mm and 800mm. Also there are double-foil type machines.
Foil coils use copper or aluminum foil as conductor, broad strap type insulation as interlaminar insulation; narrow strip type insulation of terminal insulation. They are winded to be roll type coils. Also, the inside and outside down-leads will be welded and the outer surface will be wrapped.
So, one machine can finish all the requirements for foil coils.
|foil winding machine| foil winding machine| foil winding machine| foil winding machine| foil winding machine| foil winding machine|
Main technical data of foil winding machine:
|foil winding machine| foil winding machine| foil winding machine|

No.

Item

Specifications

BRJ-1400 (II)

BRJ-1100 (II)

BRJ-800(II)

1

Coil size

1.1

Axial length,                      mm

500-1400

250-1100

180-800

1.2

Axial length (including down-lead),  mm

650-1550

400-1250

330-850

1.3

Outer diameter (excluding platoon), mm

700

1.4

Max. outer diameter,              mm

800

1.5

Min. inner diameter,              mm

130

100

85

1.6

Coil shape

round/rectangle

2

Foil material

2.1

Material

copper/aluminum foil

2.2

Width,                      mm

450-1250

200-1050

180-750

2.3

Thickness,  mm

Copper

0.5-2

0.3-2

0.3-2

Aluminum

0.5-3

0.5-3

0.5-3

3

Decoiler

3.1

Inner diameter,               mm

400\500

3.2

Outer diameter,              mm

1000

900

900

3.3

Arm length,                 mm

1350

1150

750

3.4

Expanding range,            mm

385-520

3.5

Capacity,                   kg

2000

2000

1000

3.6

Expanding force,             N

1 0-15000

1 0-10000

1 0-10000

3.7

2 0-30000

2 0-20000



3.8

Hydraulic pressure,          MPa

0-0.6

4

Winding machine

4.1

Working moment,           N/m

10000

≥7000

≥4000

4.2

Winding motor power,       kW

15

11

11

4.3

Speed regulation method

Inverter stepless

4.4

Winding shaft,              mm

50x90x1850

4.5

Winding speed,             r/min

0-20

0-25

0-30

5

Welding method

TIG, automatic



Welding speed,             m/min

0-1

0-1

0-1

6

Cutting device

disc blade

6.1

Cutting speed,              m/min

1.5

6.2

Shearing length,             mm

1350

1100

700

7

Shafts for interlaminar insulations

two sets

7.1

Shaft diameter,              mm

Less than 400

7.2

Inner diameter,              mm

76

76

76

7.3

Shaft length,                mm

1400

1100

700

8

Terminal insulation device

8.1

Quantity

Four sets (can be as requirement)

8.2

Outer diameter

less than 350mm

8.3

Inner diameter

56mm

8.4

Width

15-200mm

9

Control system

PLC automatic control

10

Counting precision

0.1 circle

11

Deviation rectifying method

Servo system

11.1

Rectifying precision

±0.1mm
